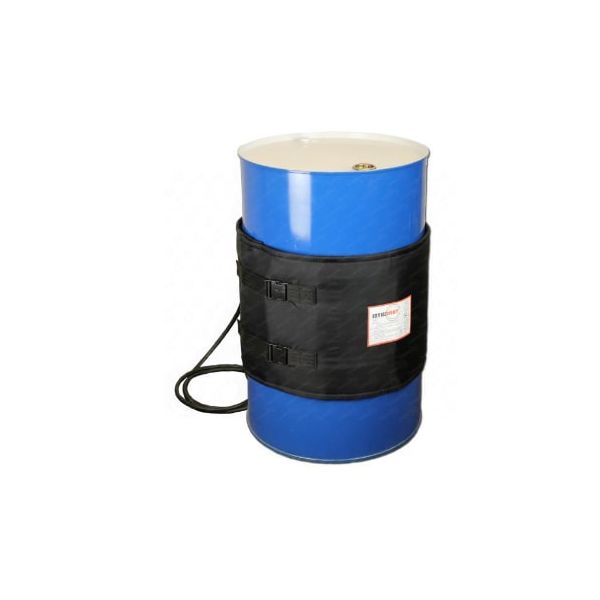

Thermulate® 55 Gallon Standard Flexible Heating Jacket - HJD

ITEM #: IH-T-HJD

In stock

SKU
IH-T-HJD
  $546.00
Description

The Standard range - Fixed Thermostat 50°C (122°F)

InteliHeat® Thermulate® Half Coverage 55 Gallon (200 Liter) Standard Drum Heating Jacket

InteliHeat® Thermulate® HJD Half Coverage 55 gallon Drum Heating Jacket fo non-hazardous ordinary locations is ideal for gentle heating and freeze protection depending on the severity of environmental conditions.
  • Ideal for gently heating, with typically maintain materials around 95°F(35°C).
  • Fixed internal thermostat: 122°F(50°C).
  • Polyurethane coated black nylon used on both sides of the jacket (inner and outer) to ensure maximum wear resistance.
  • High grade thermal insulation to reduce heat loss and increase efficiency while providing protection for the operator.
  • Fitted with adjustable retaining straps and quick release buckles.
  • Flexible - conforms to the container wall providing optimal thermal coupling.
  • Delivers heat over a large surface area, minimizing the possibilies of damaging the product.
  • Fit and forget, built to last - no regular maintenance required.
  • Safe to use 24/7.
  • 7 ft. (2m) premium oil, water, and abrasion resistant power cable.
  • Fitted with NEMA 1-15P plug.
  • Double insulated product.
  • Ambient temperature: -40°F to +104°F (-40°C to +40°C)
  • ETL approved to UL and CSA standards.
  • Waterproof and custom sizes available.

Special or non-standard sizes made to order, please email us with your container dimensions for a quotation.

Click to View/Download Spec Sheet

More Information
SKU IH-T-HJD
Technical Information
Circumference / Height 71" - 76.75" / Height 17.50" (1800 - 1950mm / 444mm)
Nominal Capacity 55 Gallon / 200 Liter
Nominal Power 600 Watts
Nominal Voltage 120 Volts



Dimensions (Internal) N/A
Short Description

ITEM #: IH-T-HJD

Thermulate® 55 Gallon Standard Flexible Heating Jacket - HJD

Overview

Product Details

InteliHeat® Thermulate® Half Coverage 55 Gallon (200 Liter) Standard Drum Heating Jacket

InteliHeat® Thermulate® HJD Half Coverage 55 gallon Drum Heating Jacket fo non-hazardous ordinary locations is ideal for gentle heating and freeze protection depending on the severity of environmental conditions.
  • Ideal for gently heating, with typically maintain materials around 95°F(35°C).
  • Fixed internal thermostat: 122°F(50°C).
  • Polyurethane coated black nylon used on both sides of the jacket (inner and outer) to ensure maximum wear resistance.
  • High grade thermal insulation to reduce heat loss and increase efficiency while providing protection for the operator.
  • Fitted with adjustable retaining straps and quick release buckles.
  • Flexible - conforms to the container wall providing optimal thermal coupling.
  • Delivers heat over a large surface area, minimizing the possibilies of damaging the product.
  • Fit and forget, built to last - no regular maintenance required.
  • Safe to use 24/7.
  • 7 ft. (2m) premium oil, water, and abrasion resistant power cable.
  • Fitted with NEMA 1-15P plug.
  • Double insulated product.
  • Ambient temperature: -40°F to +104°F (-40°C to +40°C)
  • ETL approved to UL and CSA standards.
  • Waterproof and custom sizes available.
