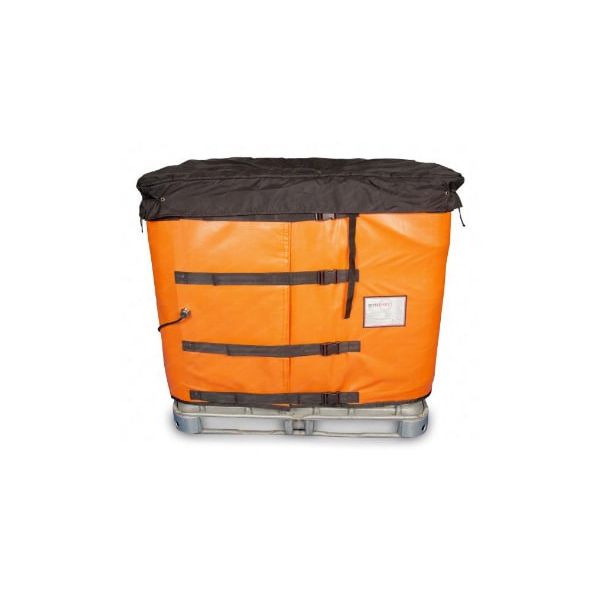

InteliHeat® 275 Gallon IBC Heating Blanket
In stock
- SKU
- IH-IBC-Z1
Description
InteliHeat® Class I Zone I 275-gallon (1000 Liter) Heating Jacket
InteliHeat® CIZ1 275 gallon Heating Jacket certified for use in Class I Zone I and 2 Classified Hazardous Locations is ideal for gently warming and to avoid winter freezing. Unique self-limiting design ensures safe operating conditions are maintained even in the presence of gasses and dust without the need for a thermostat (thermostatic control available if needed).
- Chemically resistant silicone glass cloth used on outer surfaces to extend product life in demanding applications.
- High grade thermal insulation to reduce heat loss and increase efficiency while providing protection for the operator.
- Fited with adjustable retaining straps and quicck release buckels.
- Flexible - conforms to the container wall providing optimal thermal coupling.
- Delivers heat over a large surface area, minimizing the possibilities of damaging the product.
- Fit and forget, built to last - no regular maintenance required.
- SAfe to use 24/7
- 16 ft. (5m) premium oil, water, and abrasion resistant power cable.
- Double insulated product.
- Ambient temperature: -40°F to +104°F (-40°C to +40°C)
- ETL approved to UL and CSA standards. Suitable for Class 1 Zone 1 Hazardous locations.
- A self-limiting temperature will be maintained on the container wall of around 36°F(20°C) above ambient temperature.
- Waterproof and custom sizes available.
Special or non-standard sizes made to order, please email us with your container dimensions for a quotation.
 |
     | Symbol for ATEX certified for electrical and mechanical equipment intended for use in explosive atmospheres. |
More Information
| SKU | IH-IBC-Z1 |
|---|---|
| Technical Information | This product is onliy certified for use with plastic liner metal frame IBCs. Hazardous Location Marking: To fit container: 275 Gallon / 1000 Liter |
| Dimensions (Internal) | N/A |
| Short Description | ITEM #: IH-IBC-Z1 Safe heating of IBC's, even in hazardous areas. IBC wall temperatures up to 55 degrees C (dependent on operating conditions) |
Overview
Product Details
InteliHeat® Class I Zone I 275-gallon (1000 Liter) Heating Jacket
InteliHeat® CIZ1 275 gallon Heating Jacket certified for use in Class I Zone I and 2 Classified Hazardous Locations is ideal for gently warming and to avoid winter freezing. Unique self-limiting design ensures safe operating conditions are maintained even in the presence of gasses and dust without the need for a thermostat (thermostatic control available if needed).
- Chemically resistant silicone glass cloth used on outer surfaces to extend product life in demanding applications.
- High grade thermal insulation to reduce heat loss and increase efficiency while providing protection for the operator.
- Fited with adjustable retaining straps and quicck release buckels.
- Flexible - conforms to the container wall providing optimal thermal coupling.
- Delivers heat over a large surface area, minimizing the possibilities of damaging the product.
- Fit and forget, built to last - no regular maintenance required.
- SAfe to use 24/7
- 16 ft. (5m) premium oil, water, and abrasion resistant power cable.
- Double insulated product.
- Ambient temperature: -40°F to +104°F (-40°C to +40°C)
- ETL approved to UL and CSA standards. Suitable for Class 1 Zone 1 Hazardous locations.
- A self-limiting temperature will be maintained on the container wall of around 36°F(20°C) above ambient temperature.
- Waterproof and custom sizes available.
